SD246-3.81/5.08
弹簧式PCB连接器
额定电流: 10 A
额定电压: 300 V
使用线径: 26-16 AWG
间距:3.81 mm/5.08 mm
安装: 波峰焊
UL/CUL
| Use Group | |
|---|
| Rate Voltage [V] | |
|---|
| Rated Current [A] | |
|---|
| Wire Range [AWG] | |
|---|
| Dielectric Voltage-Withstand | |
|---|
IEC
| Overvoltage Category | |
|---|
| Contamination Class | |
|---|
| Rated Voltage [V] | |
|---|
| Rated Current [A] | |
|---|
| Impulse withstand voltage [KV] | |
|---|
| Conductor cross section[solid/flexible] [mm²] | |
|---|
Material
| Insulation Material | |
|---|
| Flame relardant rating | |
|---|
| Conductor Material | |
|---|
| Plating of conductor surface | |
|---|
Other Data
| Pitch/Poles [mm]/[P] | |
|---|
| Stripping Length [mm] | |
|---|
| Screw/Torque(Max)[N.m] | |
|---|
| Operating temperature [℃] | |
|---|
| Soldering temperature | |
|---|
| Pin dimensions [mm] | |
|---|
| PCB Hole Diameter [mm] | |
|---|

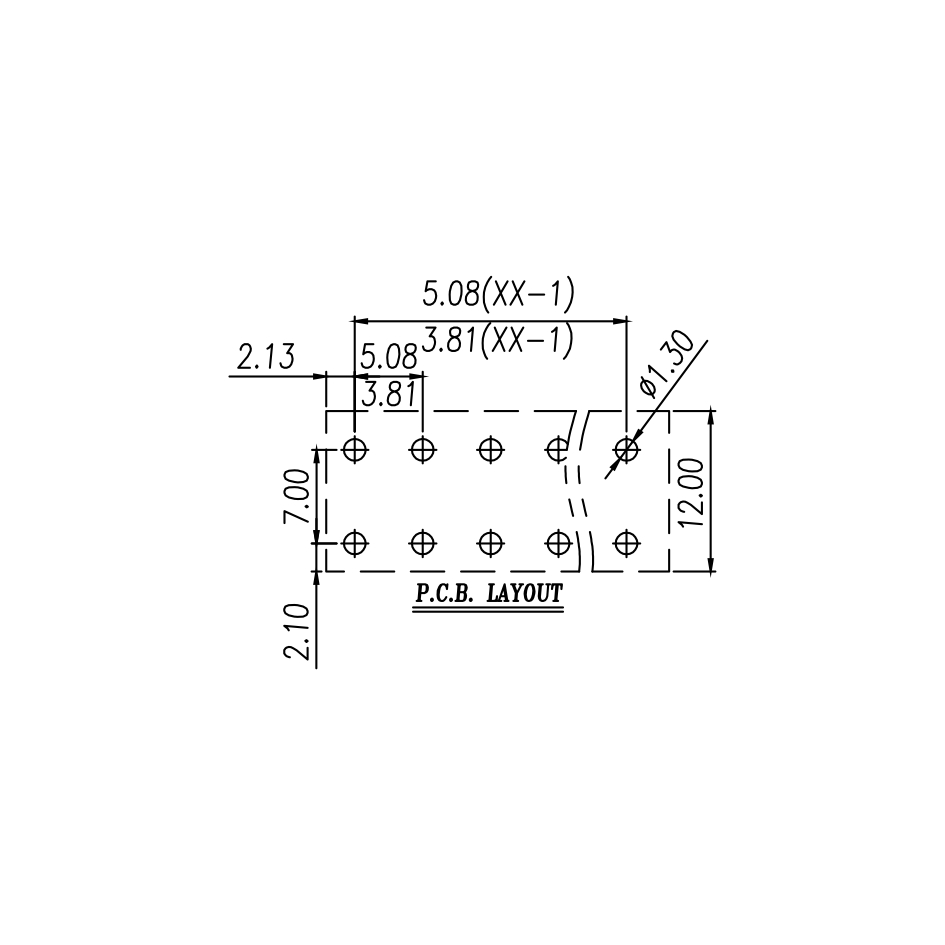

PCB Opening diagram
|

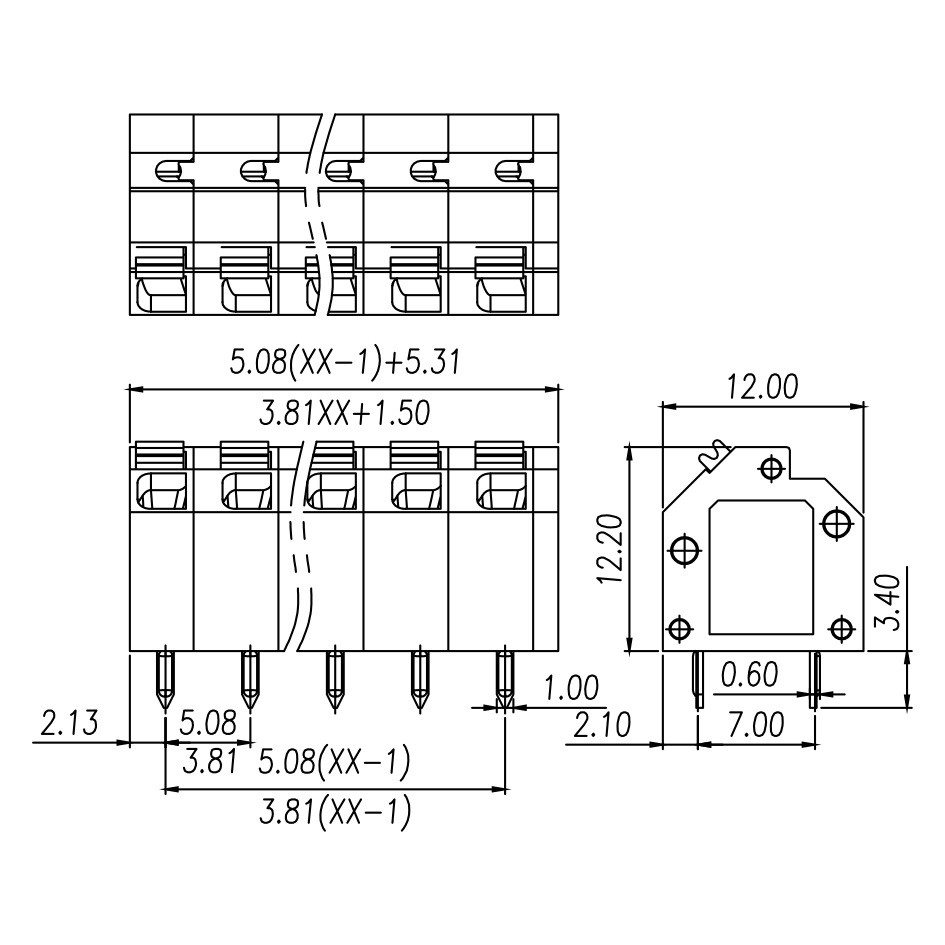

Dimensions
|
